Tension Assembly for Key-tuned Hand Drums





Here's a list of replacement parts for Remo's Tunable Hand drums, manufactured between 90'-early 2000's.

For use only on:

  • -Diane Style Tunable Doumbeks: DK-24XX-XX-
  • -John Bergamo key-tuned Kanjira ET-8207-JB-
  • -Tunable Frame Drum HD-72XX-00-
  • -Pandeiro: Chorinho, Pagode, Escola PD-82XX-XX-
  • -Tamborim TM-7206-XX

16-1536-20- PARTS, ANCHOR BOLT, 1.75" LENGTH, 10-32 THREAD,
16-1530-20- PARTS, WASHER, 0.38" OD, 0.20" ID, 0.06" THICK
16-1530-22- PARTS, HEX NUT, 0.28" TALL, 0.25" WIDTH, 10-32 THREAD,
16-1538-20- PARTS, HOOK BRACKET, STAINLESS STEEL *NOT AVAILABLE*

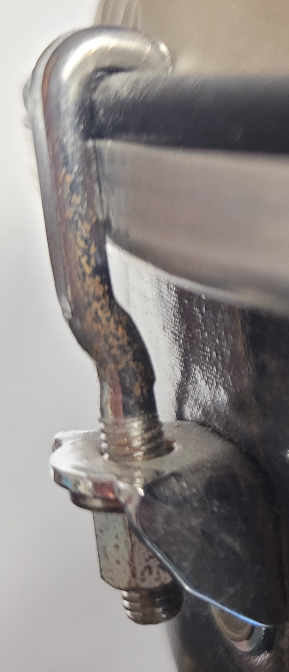

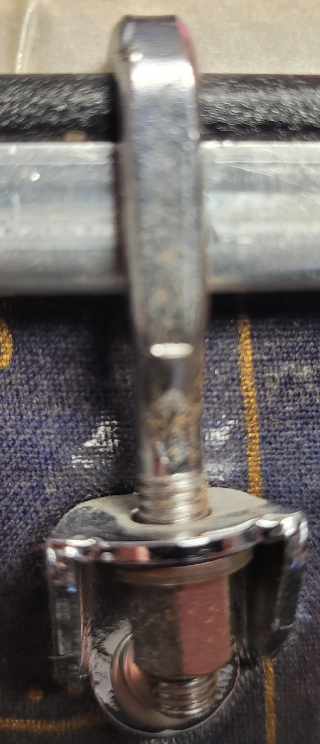

mceclip1.png                                                mceclip0.png

*The hook brackets are attached by pop-rivet in production.   If needed, access a screw assembly or pop-rivet/tool through your local hardware store.



Special order through a local or online retail store. www.remo.com/retailers
