Measuring Banjo Drumheads

How do I properly measure my Banjo Drumhead?

The diameter of a banjo head is measured inner-flesh-hoop to inner-flesh hoop of the head (you'll need to take the head off to take accurate measurement...flip the head over to measure the inner dimension(ID)). The measurement must be exact as we go off 1/16" increments.

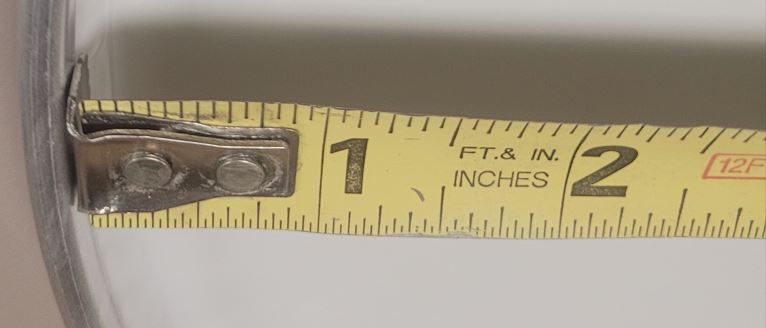

(below images represent inner-diameter measurement of 12 inches)

The Collar or 'Crown' height is measured top of the flesh-hoop (aluminum hoop of the head) to top of the playing surface of the head. Standard heights are: low-3/8", medium-7/16", high-1/2".

(below image represents collar height of 3/8 inch)

When attempting to measure a head that had been installed on a banjo measurements can be unreliable due to the stretching of the collar.  It is always best to contact the manufacturer of the banjo to get the correct size banjo head for your model.  When that option is not available we recommend consulting a retailer with experience servicing banjos.

Click here for finish options and corresponding part #'s based on your measurements to reference when placing the special order with your local or online retail store.
